DJSF1352-RN-6/S DC Din Rail Energy Meter

DJSF1352-RN Din-rail DC energy meter with dual DC input, mainly designed for telecom base stations, DC charging pile, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and positive and negative energy in the DC system. The test results can not only be used for local display, but also can be connected with industrial control equipment and computers to form a measurement and control system.

Fast And Safe Logistics
Sample Available

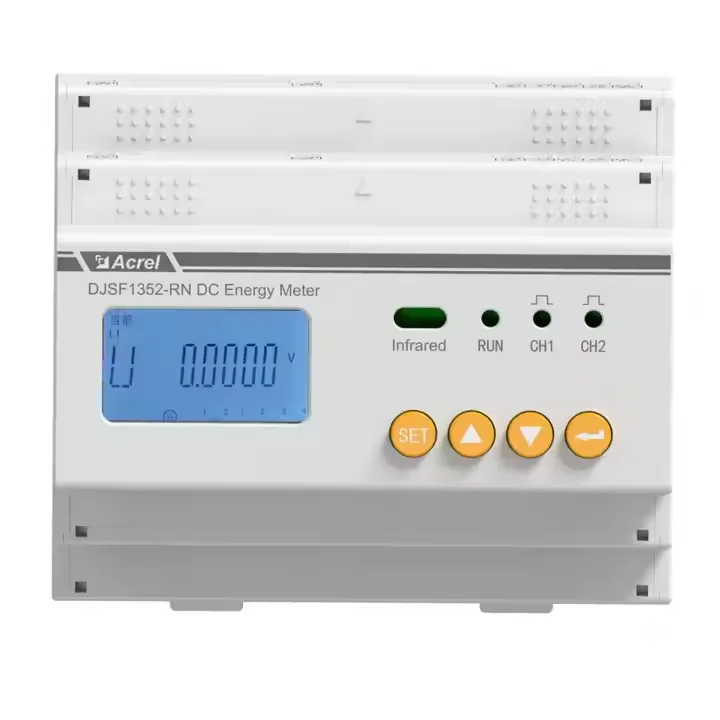

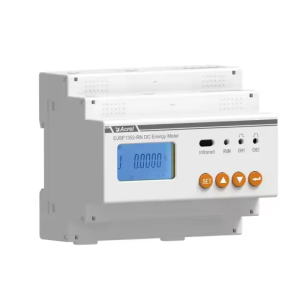

DJSF1352-RN-6/S

Voltage input range: DC 0-100V, DC 0-1500V

Current input: Shunt: 0-75mV, Hall sensor: 0-5V, 0-200mA

Accuracy level: 0.5 class

Display: 8-bit segment LCD screen (LCD)

Communication interface: RS485 (two options)

6P size

Specifications

Technical parameters		Index
Input	Nominal value	Voltage input	Current input
		DC 0-100V、DC 0-1500V See the physical wiring diagram	Shunt: 0-75mV Hall sensor: 0-5V, 0-200mA
	Overload	1.2 times can sustain normal operation, 2 times can sustain 1 second
	Power consumption	Voltage: ≤0.2VA, current ≤0.1VA
Accuracy class		Class 0.5
Function	Display	8-bit segment LCD screen (LCD)
	Communication Interface	RS485 (two options)
	Communication protocol	Modbus-RTU, DL/T 645-2007, DLT698
	Switch	Switch output (DO)	2 relay outputs, 2A/30VDC or 2A/250VAC
		Switch input (DI)	2 dry contact inputs
	Analog	Analog output (AO)	4-20mA output (0.5 level)
	Pulse output	Two channels power pulse output (the second power pulse can be switched to second pulse)
		See the display in SYS->PULS in the meter menu setting, for example: display 100, which means 100imp/ kWH
Working power supply	Voltage	AC/DC 85-265V or DC 12V-48V
	Power consumption	≤10W
Power frequency withstand voltage		Power supply//signal input//RS485 communication 4kV/1min; Except for power supply, signal input and RS485 communication, other unconnected circuits are 2kV/1min
Insulation resistance		≥100MΩ
Average barrier-free working time		≥50000h
Environment	Temperature	Working temperature: -25℃～+65℃ Storage temperature: -40℃～+80℃
	Humidity	≤95%RH, no condensation, no corrosive gas
	Altitude	≤3000m
