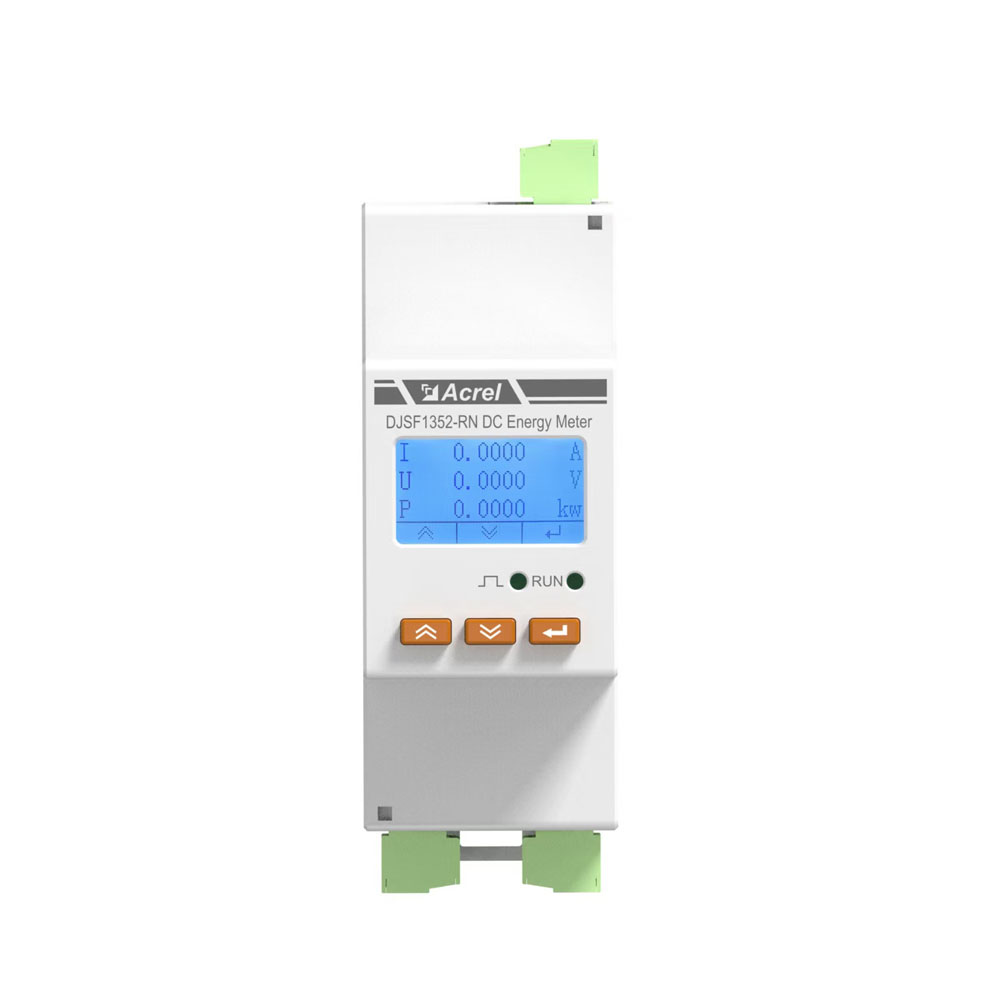

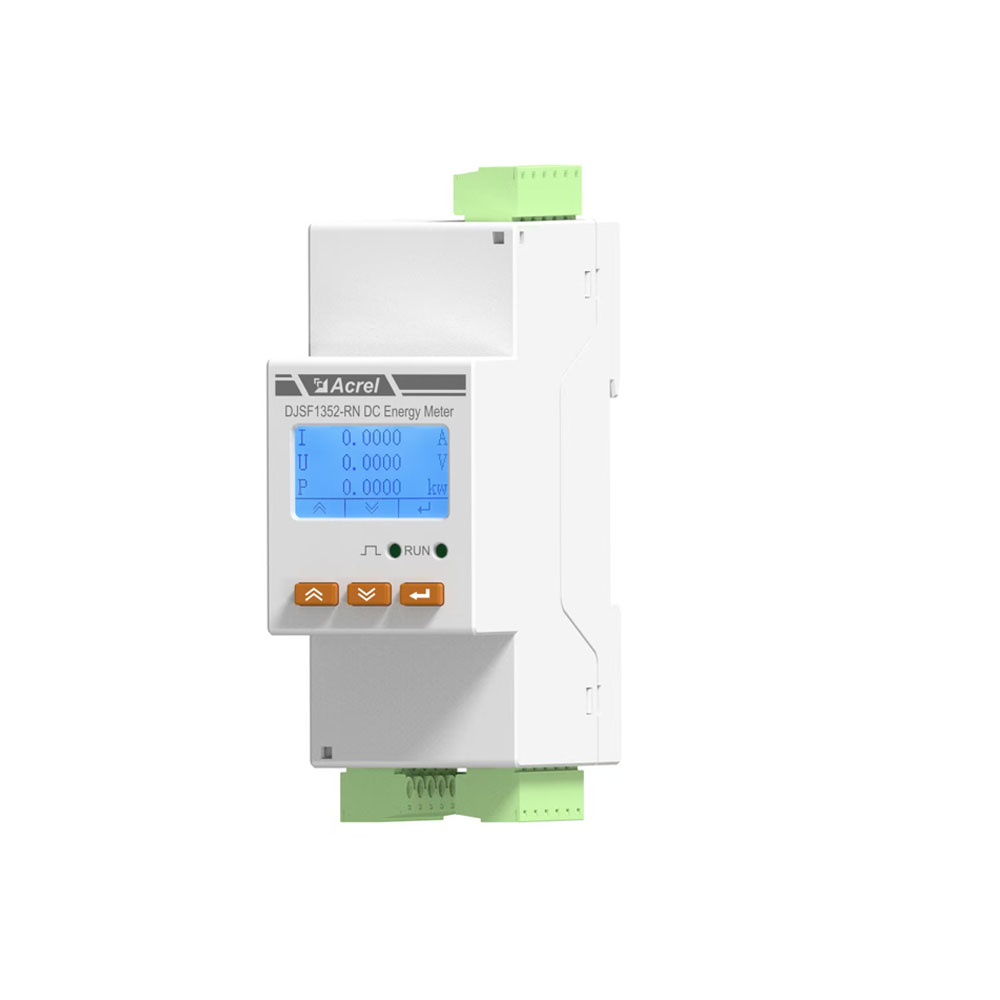

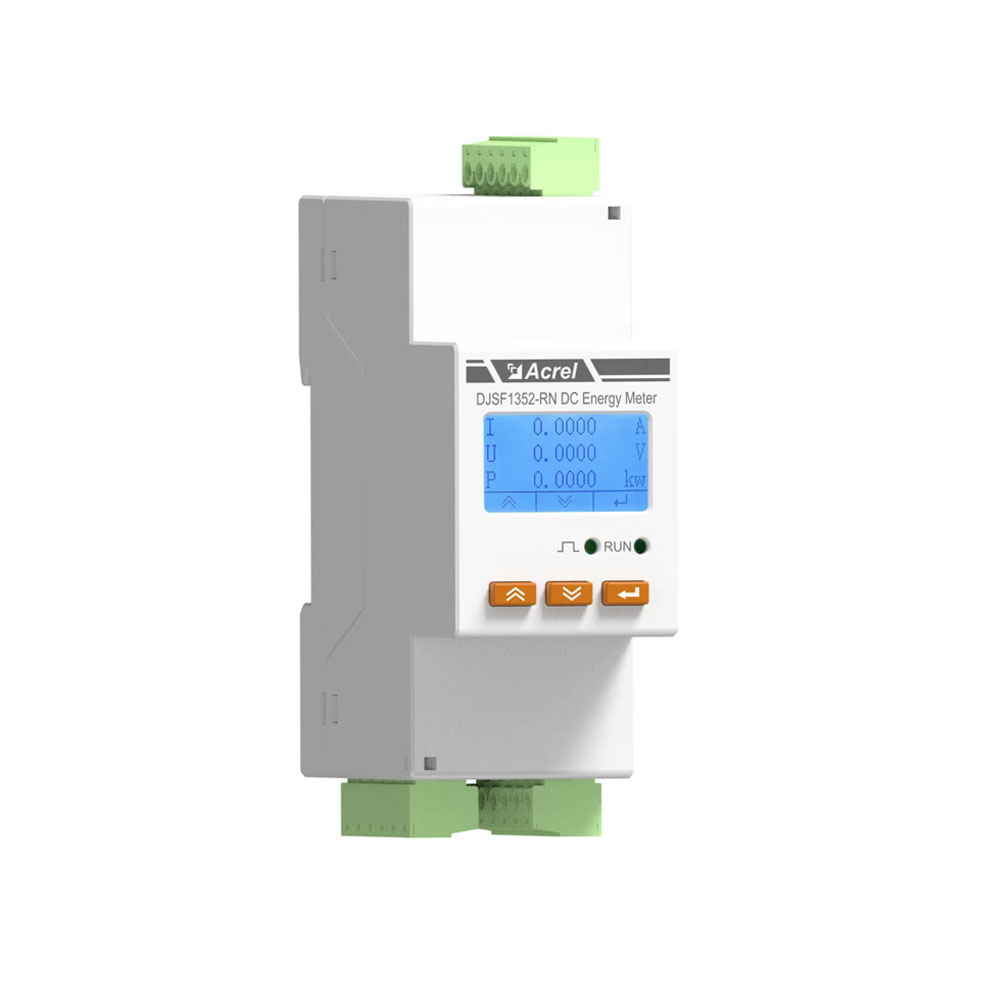

DJSF1352-RN-2 DC Din Rail Energy Meter

DJSF1352-RN-2 rail-mounted DC electric energy meter is designed mainly for DCchargingpiles,telecommunication base stations, solar photovoltaic and other application occasions. This series of instrumentscan measure voltage, current, power and positive and negative energy in the DC system. The test resultscanbeused for local display and can also be connected with industrial control equipment and computers toformameasurement and control system.

Fast And Safe Logistics
Sample Available

DJSF1352-RN-2

Measurement: kWh, kVarh, Power, Current, Voltage and etc

Current Rating: 75mV，0-5V，0-200mA

Voltage Rating: DC 0-1000V, DC0-100V

Application: DC Battery; Charging Pile; Solar PV and etc

Communication: RS485 (MODBUS-RTU)

Power Supply: 85~265V AC/DC; 12V-48V(±10%) DC

Features

●Accuracy

Class 0.5

●Pulse output

One channel power pulse output, 1-9999imp/kWH

●Communication

RS 485 Modbus-RTU，DL/T 645-2007，DLT698

●Power Supply:

AC/DC 85-265V or DC12V-48V

●Dimension(L*W*H):

36*70*90 mm

●Temperature:

Normal operating temperature：-25℃～+65℃

Storage temperature：-40℃～+80℃

DJSF1352-RN-2 DC Din Rail Energy Meter

DJSF1352-RN-2

Features

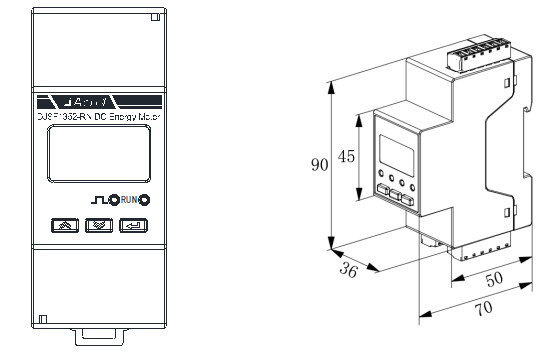

Dimension

Wiring

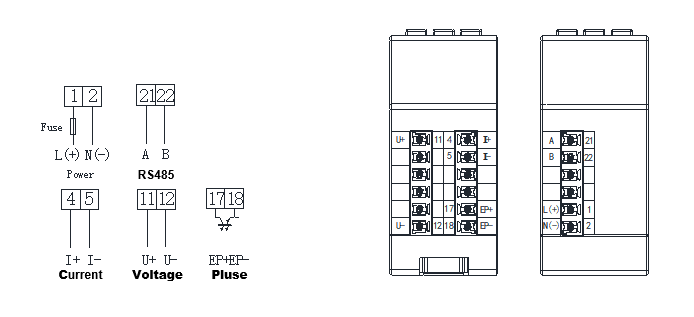

Terminals and wiring

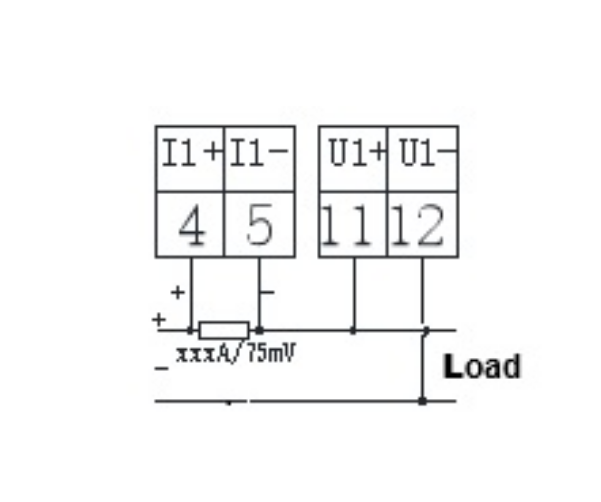

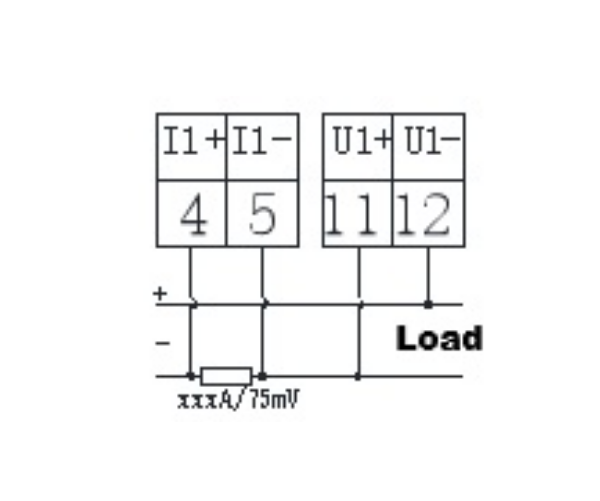

Shunt Input

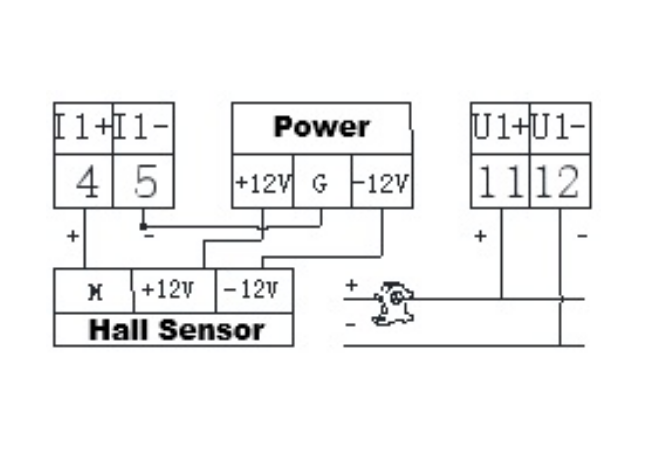

Hall Sensor Input
