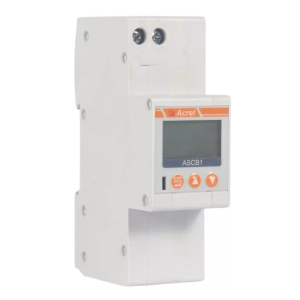

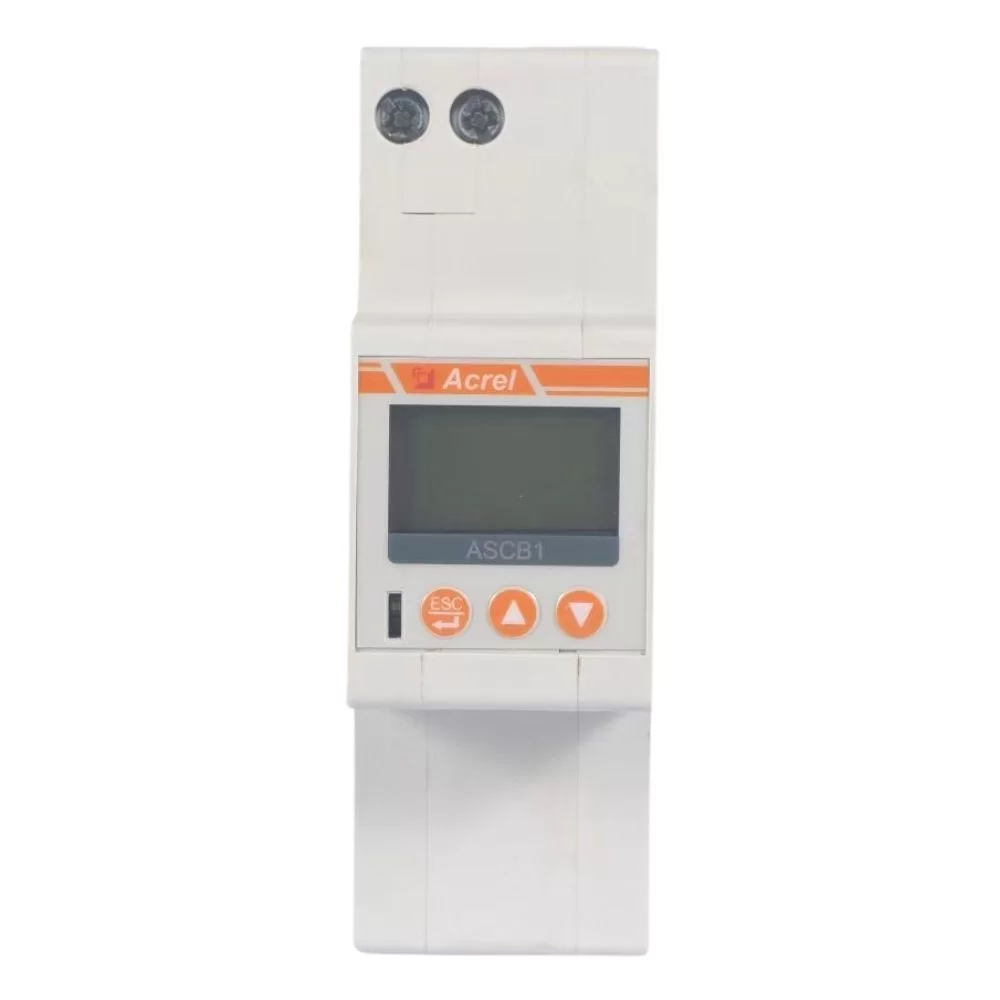

ASCB1-MS Smart Circuit Breaker Gateway

ASCB smart gateway

Get a Quote Contact Us

Fast And Safe Logistics
Sample Available

ASCB1-MS

Real time metering:voltage, current, power, electric energy, temperature and leakage parameters, standard RS-485 (MODBUS) communication.

0-63A miniature circuit breaker has an astronomical clock function, opens and closes according to longitude and latitude, and can also open and close at a freely set time.

Remote control:turn on and off via App or Website

Features

Product Model	ASCB1-M-4G		ASCB1-M-CE
Power Supply	AC 220V
Consumption	≤30W
Communication	4G		Ethernet
Display	LCD dot-matrix
Incident Record	Up to 20 alarm, fault and action records each
Protocol	Modbus、MQTT and so on
Elevation Requirements	2000m
Ambient Temperature	-10℃-55℃，24h the average temperature is not higher than 40℃
Environment Requirements	No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration
Relative Humidity	At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures
Storage Temperature	-20℃-70℃
Levels of Protection	IP20
Way to Installation	Standard 35mm guide rail installation

Wiring

default-image

Typical Connection

default-image

default-image
