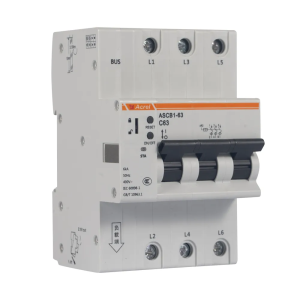

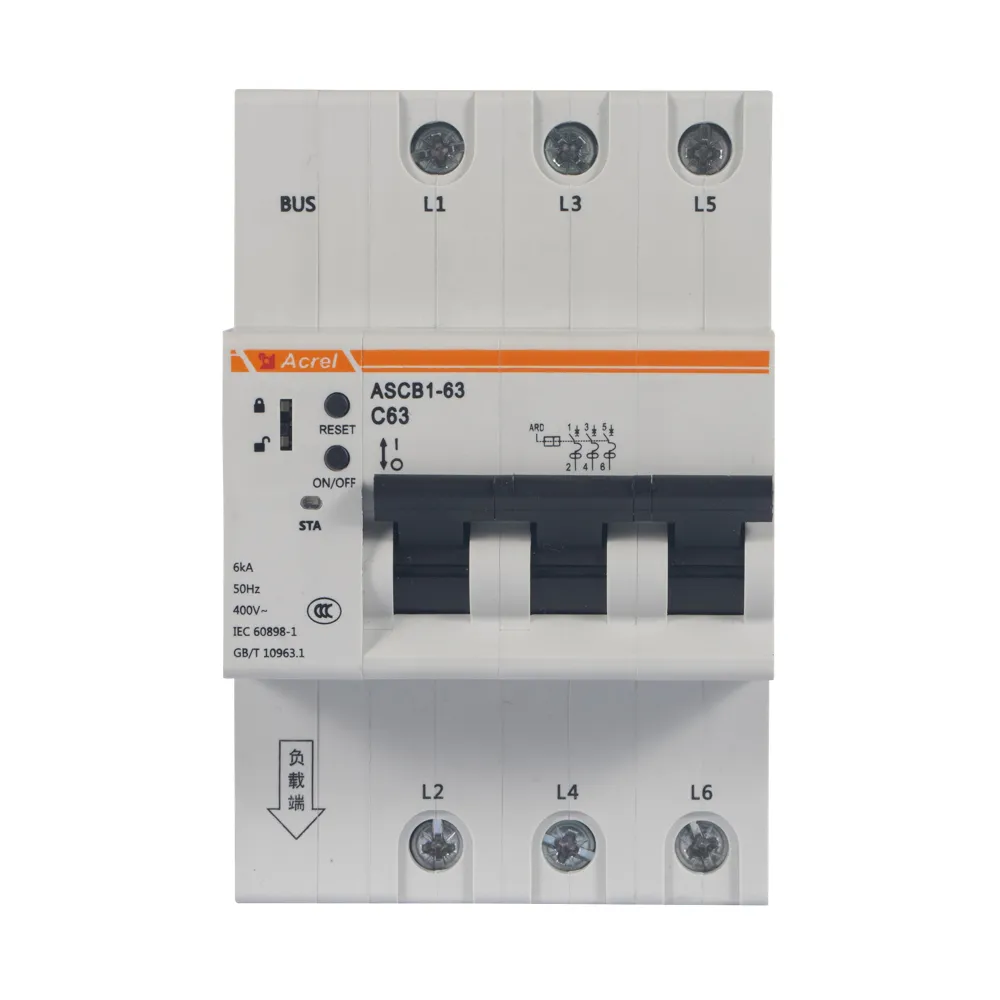

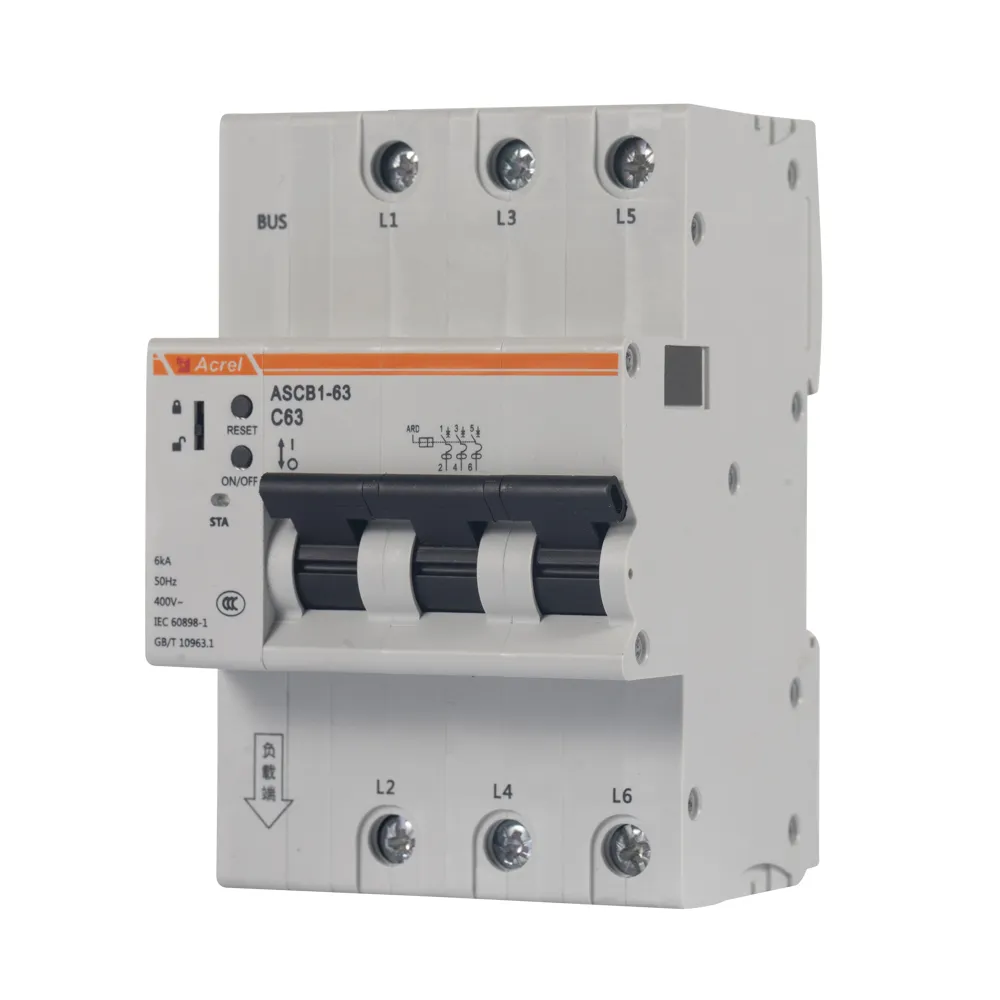

ASCB1-63-C63 3P Smart Circuit Breaker

ASCB1 smart circuit breaker 3P

ASCB1-63-C63-3P

Real time metering:voltage, current, power, electric energy, temperature and leakage parameters, standard RS-485 (MODBUS) communication.

0-63A miniature circuit breaker has an astronomical clock function, opens and closes according to longitude and latitude, and can also open and close at a freely set time.

Model		ASCB1-63	ASCB1LE-63
Pole		1P/2P/3P/4P	2P/4P
Grade of Shell		63A
Rated Voltage		230V（1P/2P）、400V(3P/4P)
Rated Current		6A,10A,16A,20A,25A,32A,40A,50A,63A
Instantaneous Unbuckle Type		C/D
Rated Short-circuit Breaking Capacity		6000A
Protect	Over-current Protection	Default 100% rated current alert， 110% Rated current trip with adjustable threshold
	Short-circuit Protection	5-10 Rated current for 0.04 seconds for circuit break protection
	Overload Protection	Default 100% rated power alert，110% Rated power trip with adjustable threshold
	Over-voltage Protection	Default 110% rated voltage alert，120% rated voltage trip with adjustable threshold
	Under-voltage Protection	Default 90% rated voltage alert，80% rated voltage trip with adjustable threshold
	Over-temperature Protection	Default 80℃ alert，100℃ trip, the threshold is adjustable
	Leakage Protection	No	Default 20mA alert, 30mA trip, the threshold is adjustable
Leakage self-Inspection		No	Manual button self-inspection
Mechanical Life		20000 times
Electrical Life		6000 times
Levels of Protection		IP20
Connection Capacity		1-35mm²
Elevation Requirements		2000m
Ambient Temperature		-10℃～55℃，the average temperature at 24h was no higher than 40℃
Environmental Requirements		No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration
Relative Humidity		At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures
Storage Temperature		-20℃-70℃
