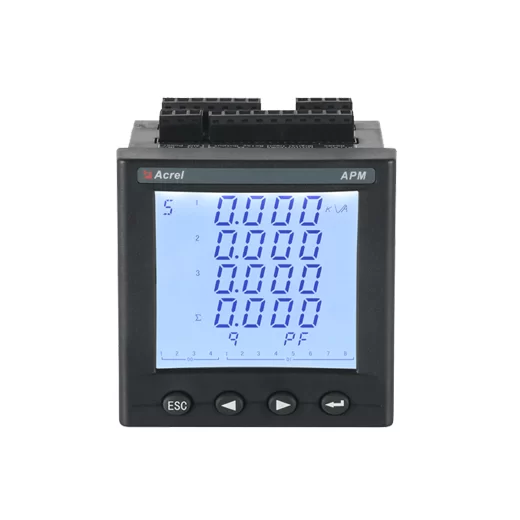

APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.
Alarms and SOE Logs
●Accuracy
Voltage、current and power: Class 0.2
Active power: Class 0.5S; Reactive power: Class 2
●Pulse output
Output mode: Optocoupler pulse with open collector;
Pulse constant: 4000 (5A)、8000 (1A) imp/kWh；

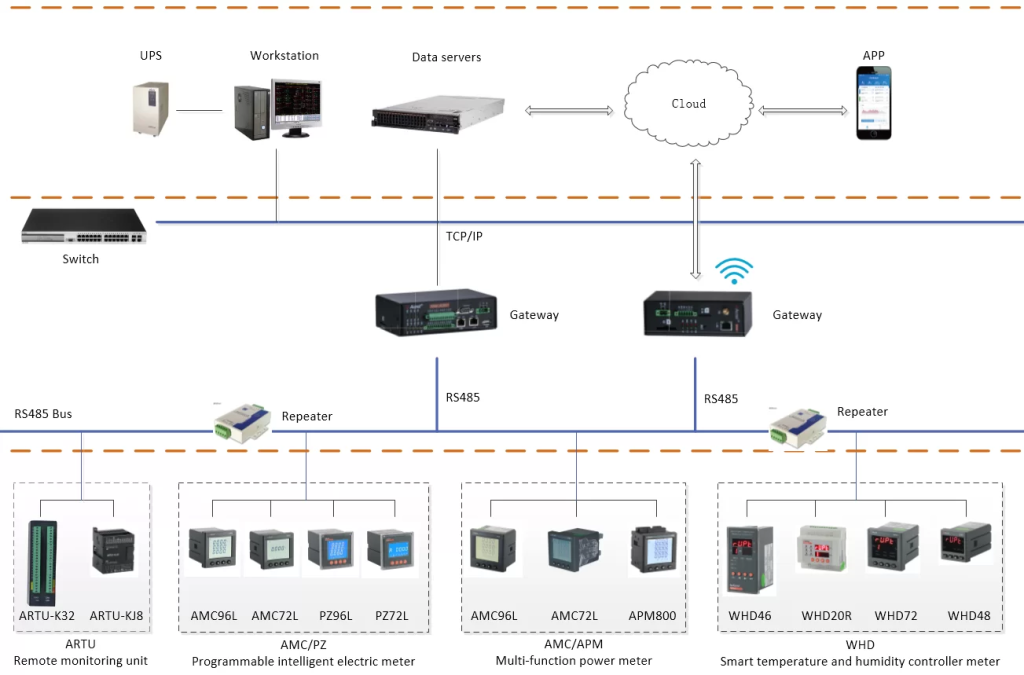

●Communication
RS 485 Modbus-RTU，DL/T 645-2007，DLT698
●Power Supply:
Voltage、current: Power consumption: <0.5VA;
Auxiliary power supply: Power consumption ≤15VA
●Consumption
<10VA(Single phase)
●Starting Current
Dimension (L*W*H)
Panel size (L×W): 96*96mm

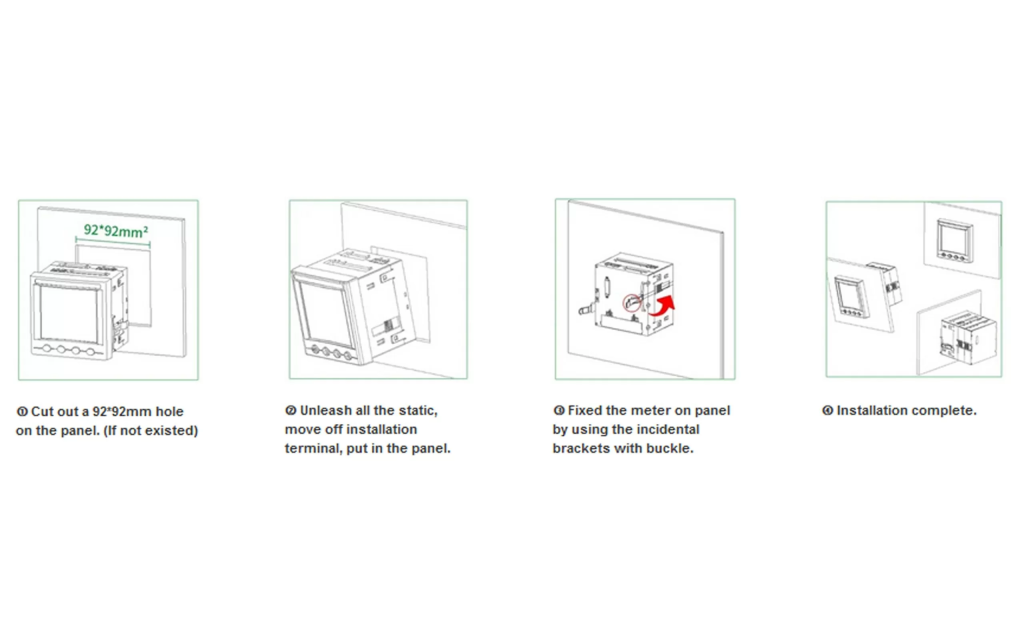

Cut-out size (L×W): 92*92mm
