ANet Series Multi-function Gateway

General

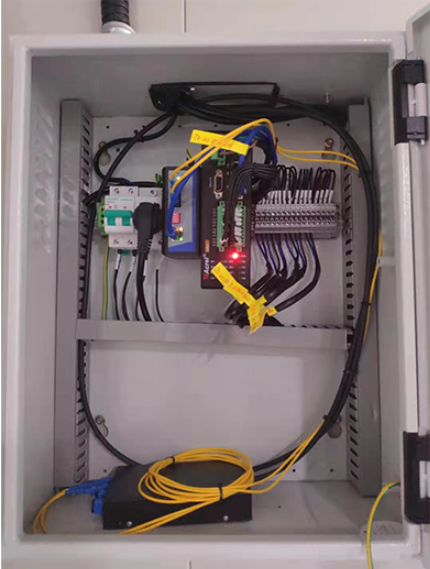

Acrel is an intelligent communication management machine developed by Acrel Electric Co., Ltd., which has Full-Netcom wireless networking function. It is suitable for the national public authorities, enterprises and institutions, public institutions, residential commercial buildings, hotels and restaurants, etc. It can meet the requirements of water, electricity, gas, oil, cooling capacity, heat and other forms of consumption and energy consumption measurement data collection.

Features of ANet Series Smart Gateway

Features

Support Data Download Resume&Storage

● Data transmitted by XML&JSON Format

● AES Data Encryption

● Equipped with standard 8GB SD card (Max. 32GB)

● Local Data Storage for up to a month

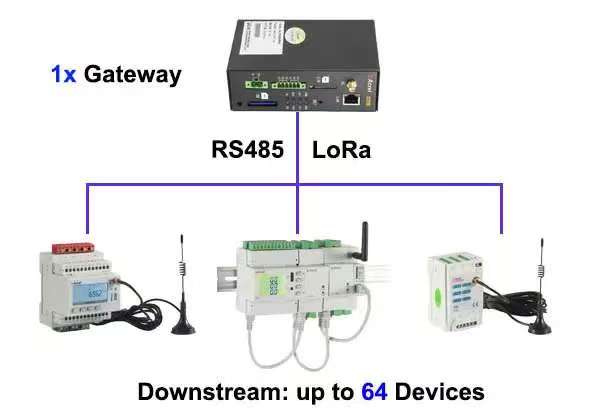

Collect Data from up to 64 Devices

● Downstream Protocol: MODBUS-RTU, MODBUS-TCP and etc.

● All type of Energy Data: Electricity, Gas, Water, Oil, Cold, Heat and etc.

● Up to 8 Serial Interface for Data Collection

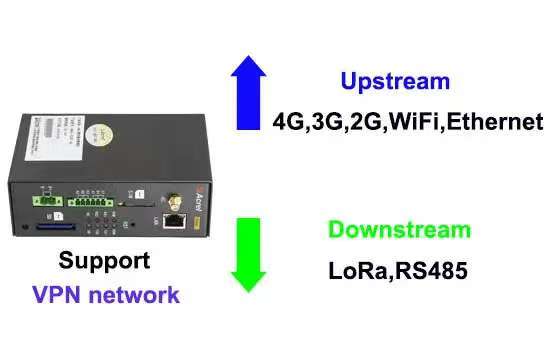

Diverse Communication Methods

● Upstream: 4G, 3G, 2G, WiFi, Ethernet

● Downstream: RS485, LoRa

● Support VPN Network

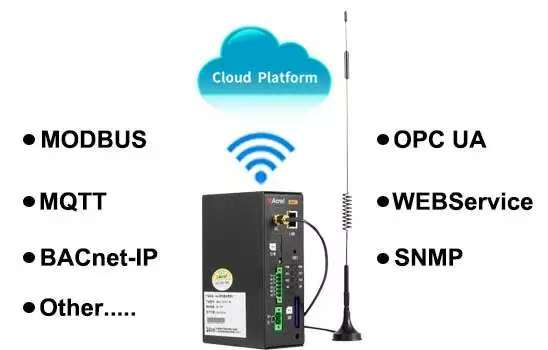

Multiple Communication Protocol

● MODBUS

● MQTT

● BACnet-IP

● OPC UA

● WEBService

● SNMP

● .......etc

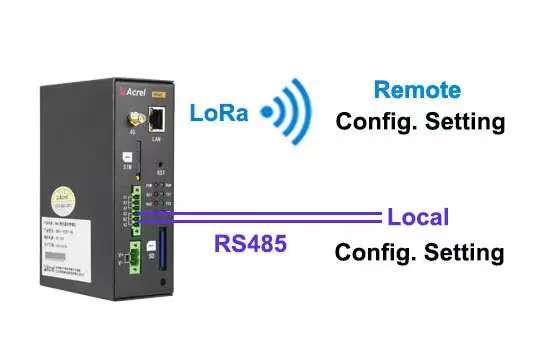

Local&Remote Configuration Setting

● Alarm setting for Downstream Devices

● Batch devices setting&adjustment

● Cut off extra Waste on Adjustment

Stable Operation

● Double wide Voltage (DC / AC 85V ~ 265V)

● Reverse Connection Protection

● Built-in Linux OS

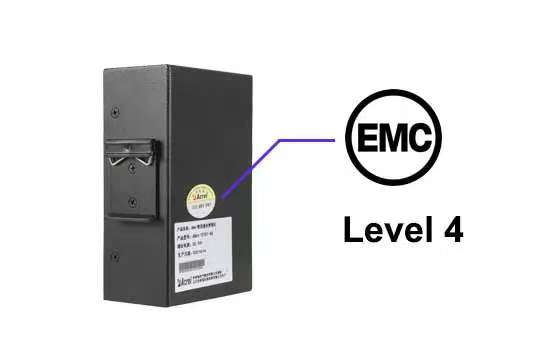

● EMC Level 4

● Opto-coupler Isolation

Technical Parameter

ANet-1E2S1-4G

Excellent Hardware	Support 2G/4GThe whole machine through EMC test level 4 testAll communication terminals 2kV power frequency withstand voltage testDouble wide voltage (DC / AC 85V ~ 265V) reverse connection protectionBuilt-in 8G SD card extensible plug-and-play electronic hard disk
Flexible and Convenient Management	Flexible, efficient and reusable custom template library configuration modeMeter information automatically generated by key clickedSupports optional and fully optional single-table structure forwarding data setsSupport for batch operations, can be filled with step size of efficient configuration
Stable and Efficient Software	Up to 64 metering equipmentSupport local and remote configuration maintenance and real-time data monitoringCan support multiple data centers to upload data using different protocolsSupport breakpoint continuation, data XML format and AES encryptionANetOS System level anti-damage protection algorithm provides system operation, upgrade, update configuration and other error protection, automatic recovery capabilitySupport 4G routing network to provide DHCP intelligent access judgment

Technical Parameters

Hardware
Technical Data	Index
Power	Voltage	AC 85V ～265V
	Consumption	≤10W
Processing element		ARM32 digit Free scale ARM9 i.MX2xx 454MHz
Inner board memory		64MB DDR2 internal memory + 128MB NAND Flash + 8G SD Card Electronic hard disk
Serial interface		Two channels coupling isolation RS485
Ethernet interface		1 channel 10/100 self-adaption capacity
SD card interface		Supports SD/MMC memory cards of not less than 512 M, supports hot-plug and plug-and-play breakpoints to continue data storage
Safety		Power frequency withstand voltage: AC 2kV 1min between communication terminal and auxiliary power supply
		Insulation resistance: input, output to shape>100MΩ
Environment		Working Temperature：-20℃～+55℃Storage Transport Temperature：-25℃～+70℃Relative Humidity ：≤95%（+25℃）Altitude：≤2500m
EMC Testing		IEC61000-4-2 ESD immunity test Class 4IEC61000-4-4 Resistance test of electric fast transient pulse group Class 4IEC61000-4-5 Surge (shock) immunity test Class 4IEC61000-4-6 Conductive disturbance immunity of RF field induction Class 3

Software
Configuration		C/S architecture ANetCM configuration management software, open template management, plain text or excel engineering information management
Fast update		ANetOS provides 1-3 seconds extreme speed configuration update 3-7 seconds firmware upgrade update.If the error configuration is updated, the loss-proof algorithm automatically returns the device to the pre-update configuration state within 3-5 seconds.If the upgrade has a problem firmware, the damage prevention algorithm automatically returns the device to the pre-upgrade state within 5-10 seconds.
Networkcommunicationmode		Socket mode, support XML format compression upload, provide AES encryption and MD5 identity authentication and other security requirements

ANet-2E8S1

Excellent Hardware	Core optimization makes industrial-grade ARM Cortex-A7 more powerfulThe whole machine passes the electromagnetic compatibility test level 4 testAll communication terminals pass the 2kV power frequency withstand voltage testdouble wide voltage (DC / AC 85V ~ 265V, DC 12V ~ 36V) reverse connection protectionSD card +USB2.0 dual expandable plug and play storage media
Flexible and convenient management	Flexible and efficient reusable custom template library configuration modeMeter information point is automatically generated with one clickSupports optional and fully-selected single-table structure forwarding data setsSupports efficient operation such as batch operation and step-filling
Stable and efficient software	Supports up to 256 metering devicesCollecting information points total 10240Support local and remote configuration maintenance and real-time data monitoringSupport multiple data centers to upload data using different protocolsSupport for breakpoint resuming, data XML format and AES encryptionANetOS system-level loss prevention protection algorithm provides error protection and automatic recovery capability for system operation, upgrade, update configuration, etc.

Technical Parameters

Hardware
Technical Parameters	index
Power supply	Voltage	AC 85 V ～265 V 、 DC 12 V ～36 V (instruction when ordering)
	Consumption	≤10W
Processor	ARM32-bit Cortex-A7 core, 528MHz
Onboard storage memory	256MB DDR3 memory + 256MB NAND Flash electronic hard disk
Serial interface	8 optocoupler isolation RS485 + 1 RS232 (debug port)
Ethernet interface	2-way 10/100M adaptive
USB HOST	1 USB2.0 high speed interface, support hot plug and plug and play break point resume data storage
SD card interface	Built-in 8GB SD Card electronic hard drive, support hot plug and plug and play break point resume data storage
Safety	Power frequency withstand voltage: AC 2kV 1min between communication terminal and auxiliary power supply
	Insulation resistance: input and output to the chassis >100MΩ
Environment	Operating temperature：-20℃～+55℃Storage transport temperature：-25℃～+70℃Relative humidity ：≤95%（+25℃）Altitude≤2500m
Electromagnetic compatibility test	IEC61000-4-2 ESD immunity test Class 4IEC61000-4-4 Resistance test of electric fast transient pulse group Class 4IEC61000-4-5 Surge (shock) immunity test Class 4IEC61000-4-6 Conductive disturbance immunity of RF field induction Class 3

Software
Device Configuration	C/S architecture ANetCM configuration management software, open template management, plain text or excel engineering information management
Quick update	ANetOS provides 1-3 seconds of speed configuration updates and 3-7 seconds of firmware upgrades.If the error is configured incorrectly, the loss prevention algorithm automatically restores the device to the pre-update configuration state within 3-5 seconds.If you upgrade the problematic firmware, the loss prevention algorithm automatically restores the device to the pre-upgrade state within 5-10 seconds.
Console configuration	RS232 serial command line simple command set configuration management
Communication method	Socket mode, support XML format compression upload, provide security requirements such as AES encryption and MD5 identity authentication
Data collection cycle	Second level custom configuration
Automatic upload cycle	Second, minute level custom configuration, depending on the upload protocol
Protocol support	In addition to the general standard protocol, it can support customized development of non-standard protocols on the acquisition side and the upper computer.
Timed with the host computer	Keeping in sync with the host computer in real time
Break point resume	Real-time detection, upload failure automatically saves pending data, supports plug-and-play and space expansion of external storage media, and automatically uploads data to be transmitted when network recovery
Historical stock store	Historical inventory storage according to the automatic upload cycle,Customizable history database data save days, expiration first in, first out,Storage space automatically overflows, near overflow value first in, first out
