| Auxiliary power | AC/DC 85～265V; Consumption≤10VA; | |
| Input | Frequency | 45～65Hz; |
| Voltage |
AC 3×220V/380V; Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s; Power consumption: ≤ 0.5VA; |
|
| Current |
AC 5A、100A、400A、600A;(External opening transformer); Power consumption: ≤ 0.5VA; Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s; |
|
| Measurement accuracy |
Frequency 0.05Hz, voltage、current Class 0.5; 2-31st harmonic accuracy: ± 1%; Active electric energy level 1, reactive electric energy level 2; |
|
| Features | Pulse output | Output mode: optocoupler pulse with open collector; |
| Communication | RS485、Modbus-RTU; Baud rate 1200～38400; | |
| Switching Input | Dry contact input、Built in power supply; | |
| Switching Output |
Output mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A; |
|

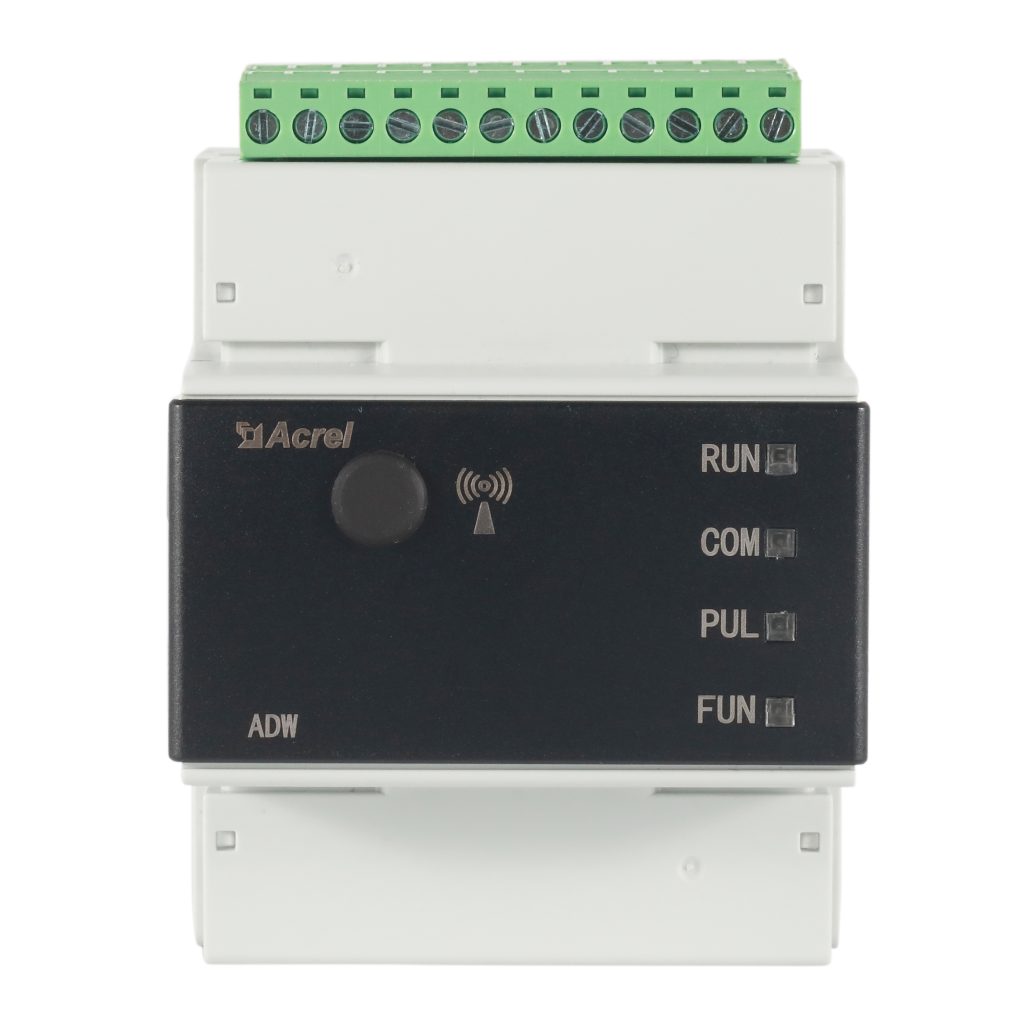

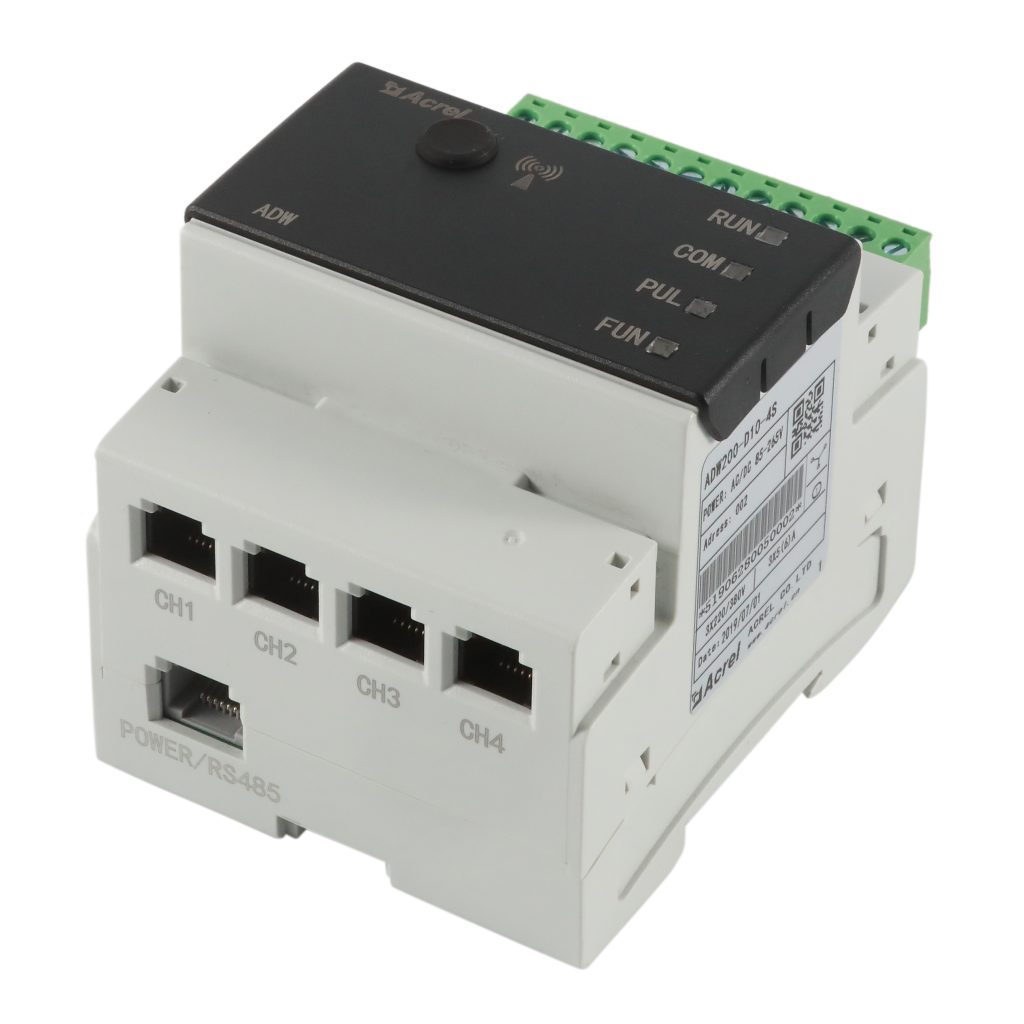

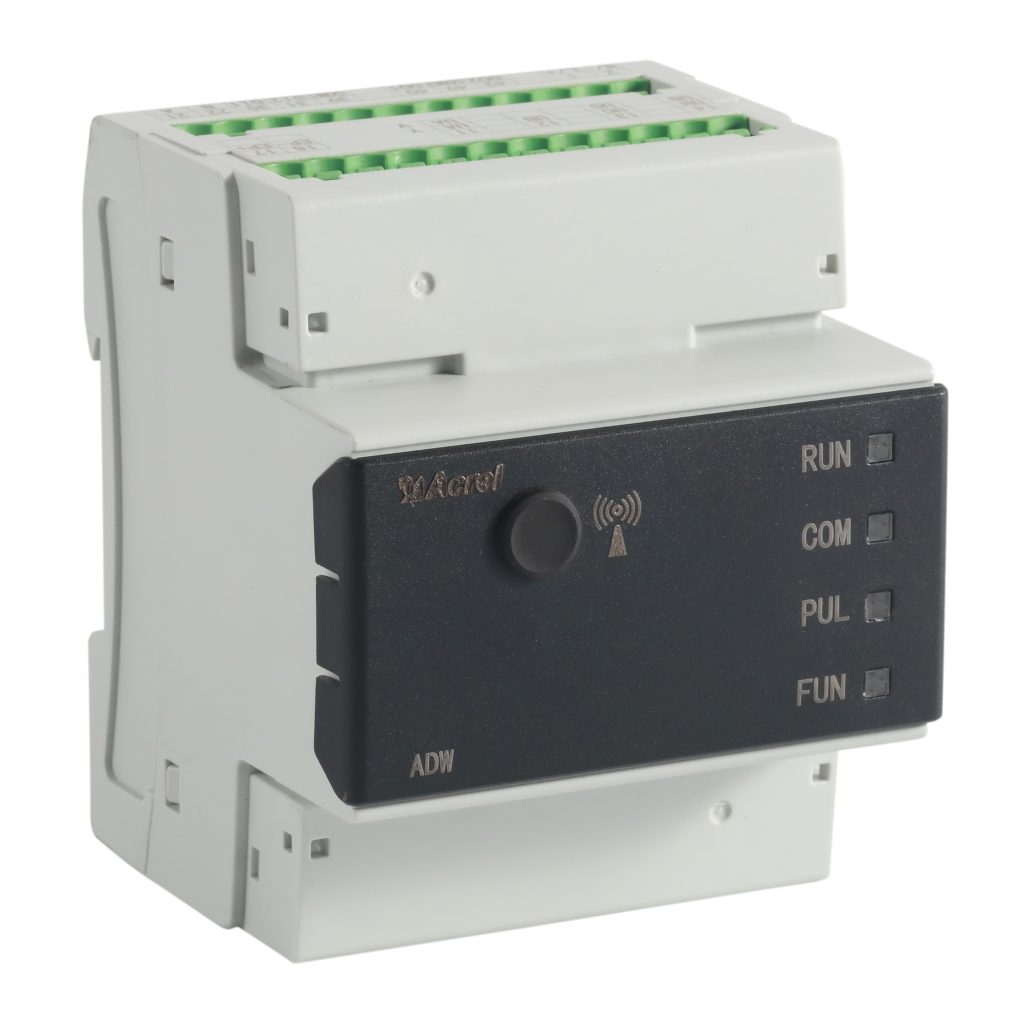

ADW200 IoT Multi-Circuits Energy Meter

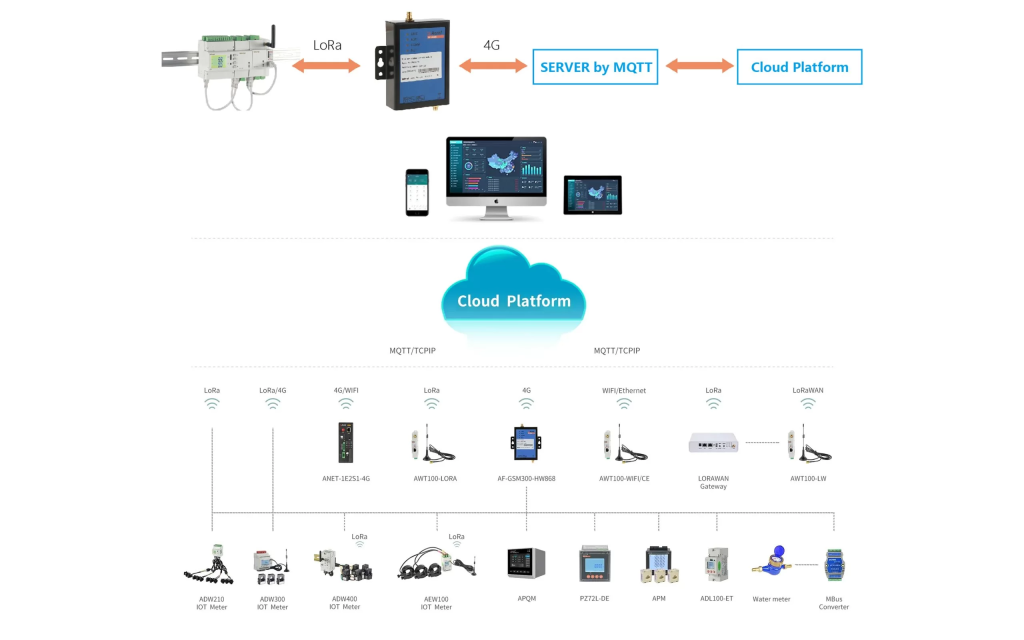

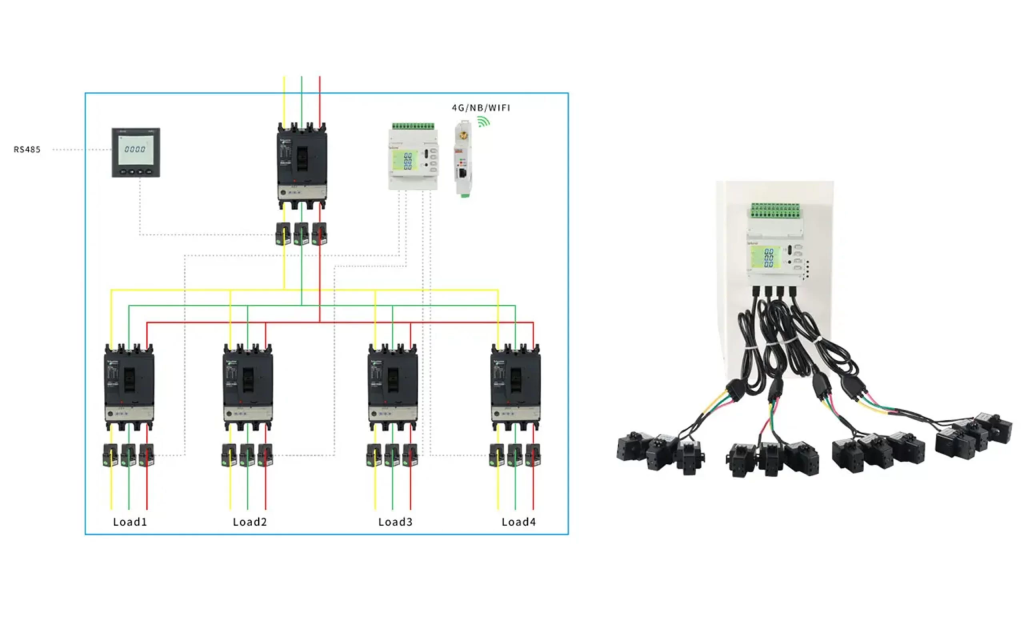

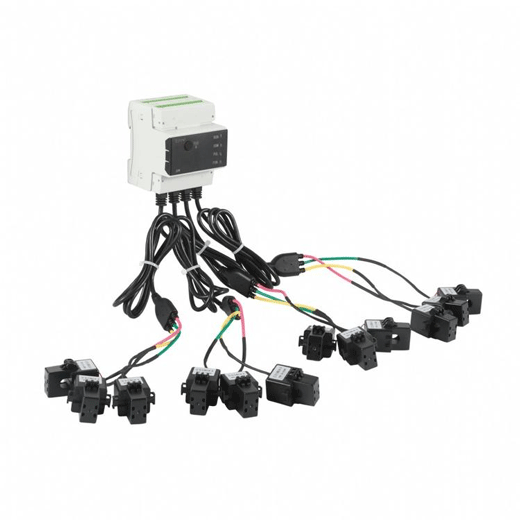

ADW2 series multi-circuit power meters are mainly used to measure all electrical parameters of three-phase circuits. At the same time, current input of up to four three-phase circuits can be selected. ADW2XX series products use open current transformer connection to facilitate on-site installation, and realize remote wireless communication through wireless communication modules.
- Fast And Safe Logistics
- Sample Available
