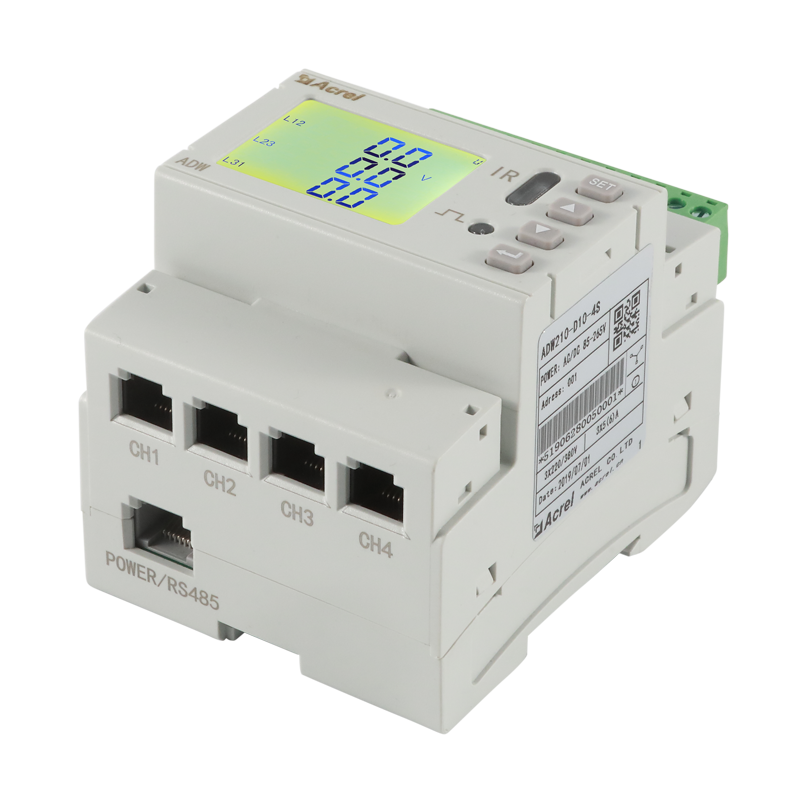

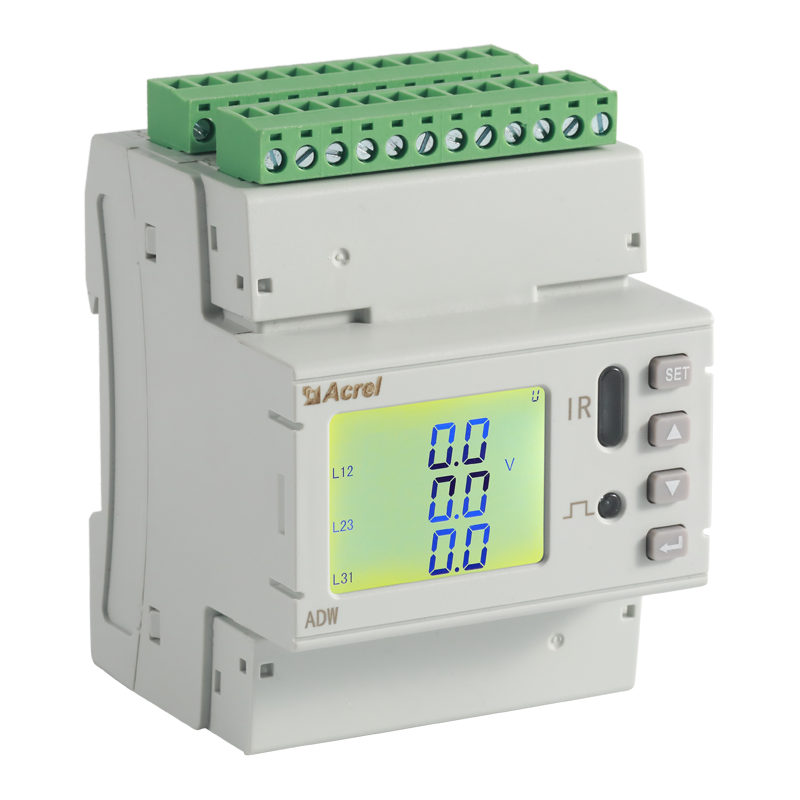

DTSD1352-4S Multi-circuit Energy Meter

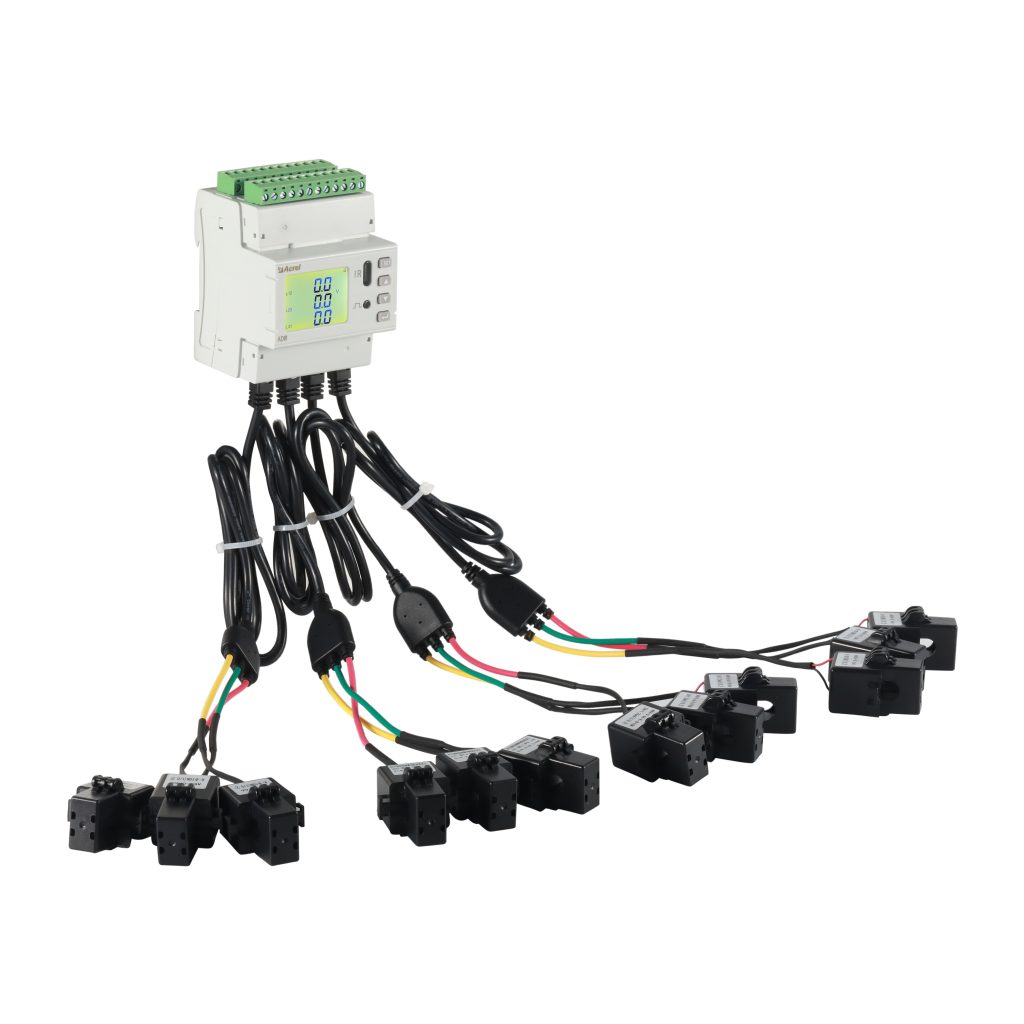

DTSD1352-4S series DIN-rail type multi-circuit power meter is mainly used for the full electric parametermeasurement of multiple circuits, and can be connected to the current input of 4 three-phase circuits or 12single-phase circuits at the same time. It can measure parameters such as voltage and current, power, power factor,phase angle, unbalance, and harmonics.

Uzyskaj wycenę Skontaktuj się z nami

Szybka i bezpieczna logistyka
Próbka dostępna

ADF400L

Energy Metering
Total active energy, forward and reverse active energy, multi-rate active energy measurement

Multiple Tariff Rate
Support 4 time zones, 2 time slots, 14 daily time slots, 4 rates

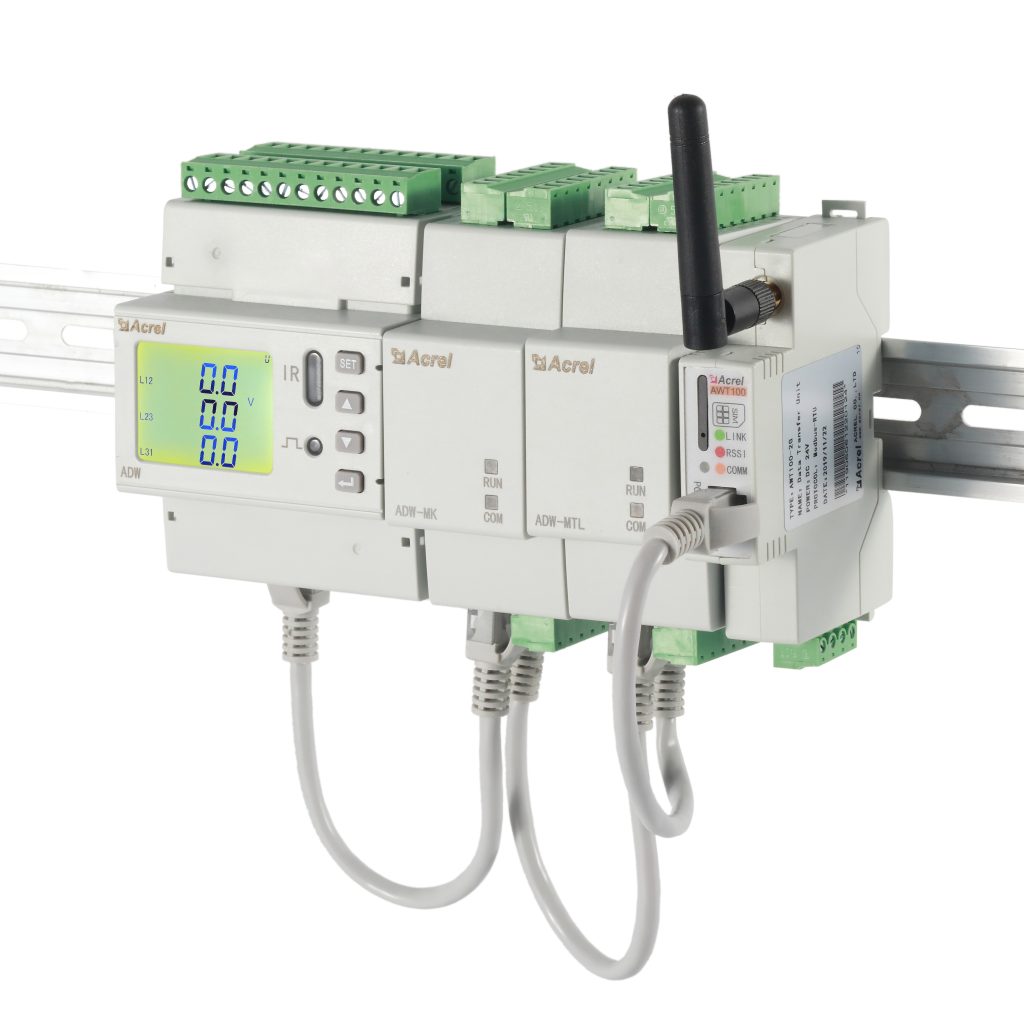

Multi module extend
12 three-phase or 36 single-phase direct access measurement
12 three-phase mutual inductor access measurement

Communication
Infrared communication, MODBUS-RTU, Modbus-TCP、TCP/IP

Features

Function	ADF400L
Display	LCD
Energy monitoring	Active energy (positive、negative), Reactive energy (positive、negative)
Power measurement	Voltage、current、power factor、frequency、active power、reactive power、apparent power
Harmonic function	Total harmonic、sub harmonic (2～31)
3 phase unbalance	Voltage, Current unbalance
DI/DO	Main module 2DI2DO; CT connect 2DI4DO (direct connect)
Communication	Infrared; RS485 MODBUS-RTU and DL/T645
History energy	12 month energy record
