• Insulation monitoring for medical IT systems, range:10-999kO
• Adjustable response value for insulation monitoring
• Load and temperature monitoring for IT system transformers
• Adjustable load current and temperature response value
• Self monitoring with automatic alarm
• IT system, PE connection monitoring
• Locating current injector for insulation fault location systems(AIM-M300/SG)
• Two relays
• 1 RS485, Modbus-RTU protocol,1 CAN, internal protocol
• Up to 20 fault message memory
Warning: Undefined array key 0 in /www/wwwroot/acrel.pl/wp-content/plugins/sytech-fronteditor/sytech-fronteditor.php on line 342
Warning: Attempt to read property "dup_id" on null in /www/wwwroot/acrel.pl/wp-content/plugins/sytech-fronteditor/sytech-fronteditor.php on line 342
General
Acrel AIM-M300 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M300 is designed to support insulation fault location.AIM-M300 series medical intelligent monitoring device adopts advanced micro-controller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is suitable for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.
Technical Parameter
AUX Power
Voltage
DC 18…36V
Power consumption
≤6W
Insulation Monitoring
Resistance measuring range
15…999kΩ
Response value
50…999kΩ
Relative uncertainty
±10%,±10K
Response time
≤3s
Permissible system leakage capacitance Ce
≤5uF
Measuring voltage Um
≤12V
Measuring current Im
≤50uA
Impedance Zi
≥200kΩ
Internal DC resistance Ri
≥240kΩ
Permissible extraneous DC voltage Ufg
≤DC280V
Temperature monitoring
Thermal resistor
2 Pt100
Measuring range
-50~+200℃
Alarm value range
0~+200℃
Current Monitoring
Alarm Value
5…60A
Measuring accuracy
±5%

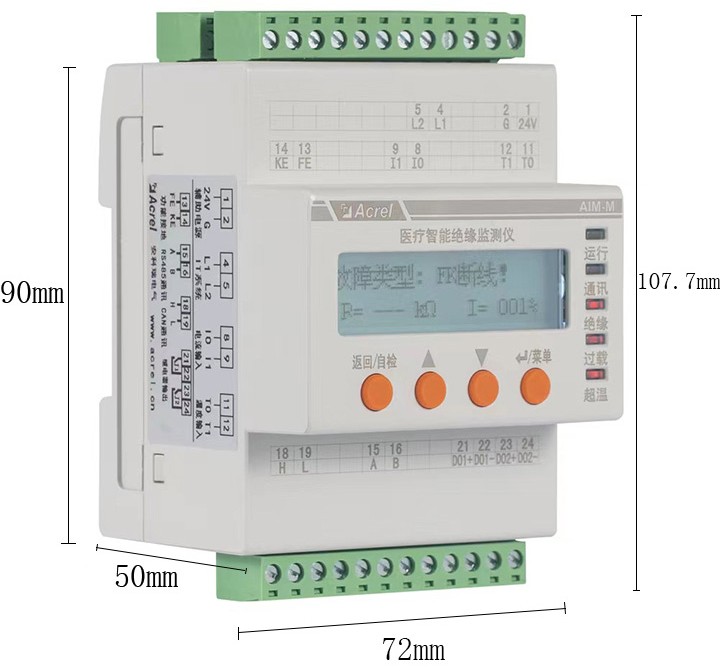

Outline and Dimension

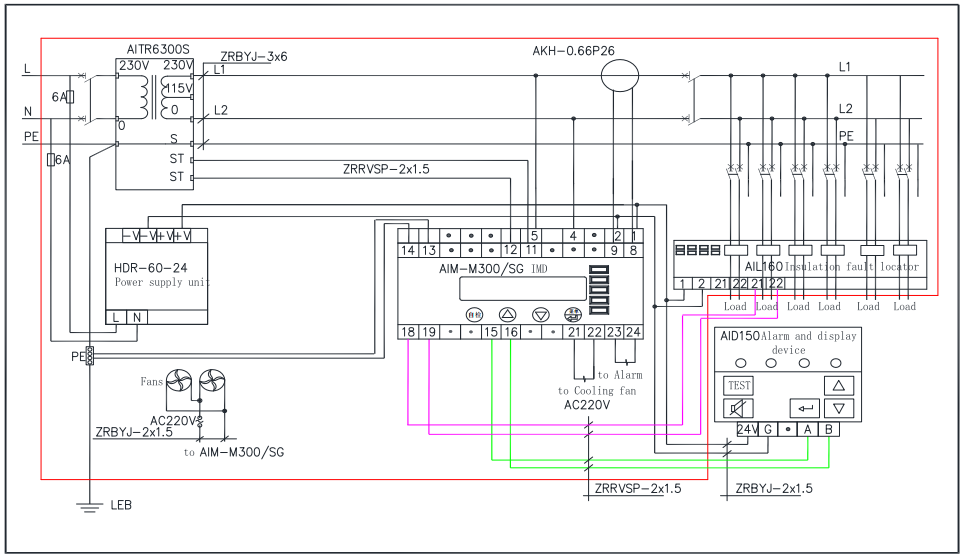

Wiring
24V, G for the auxiliary power supply, and L1, L2 are connected to the IT system (which can be connected to the two output terminals of isolation transformer). I0, I1 for the current transformer signal input, and T0, T1 as the temperature sensor signal input. KE, FE are the functional grounding wires, which should be connected to the on-site equipotential terminals by two independent wires.
