ADL400-D,ADL400-U Trójfazowy licznik energii na szynę DIN

Licznik energii ADL400 na szynę din jest przystosowany do montażu na szynie DIN 35 mm z wyświetlaczem LCD, może mierzyć parametry elektryczne i ma wyjście impulsu energii, komunikację RS485, która ma zalety małych rozmiarów, wysokiej precyzji, dobrej niezawodności i wygodnej instalacji.

Uzyskaj wycenę Skontaktuj się z nami

Szybka i bezpieczna logistyka
Próbka dostępna

ADL400 CE-ADL400 EAC-ADL200 MID-ADL400

ADL400-D,ADL400-U

Rated Current: AC0.1-10(80)A

Rated Voltage: AC3x230V/400V

RS485(MODBUS-RTU) Communication

12 digits LCD Display; 35mm DIN Rail Installation

Energy Accuracy:kWh Class C

MID Certificated

Functions

Technical Parameters

Display

Wiring

① Voltage Enter-wire
② Brand
③ Panel
④ Up Button
⑤ Down Button
⑥ Auxiliary function
⑦ Pulse Output
⑧ Model
⑨ Set Button
⑩ CT Enter-wire

Network

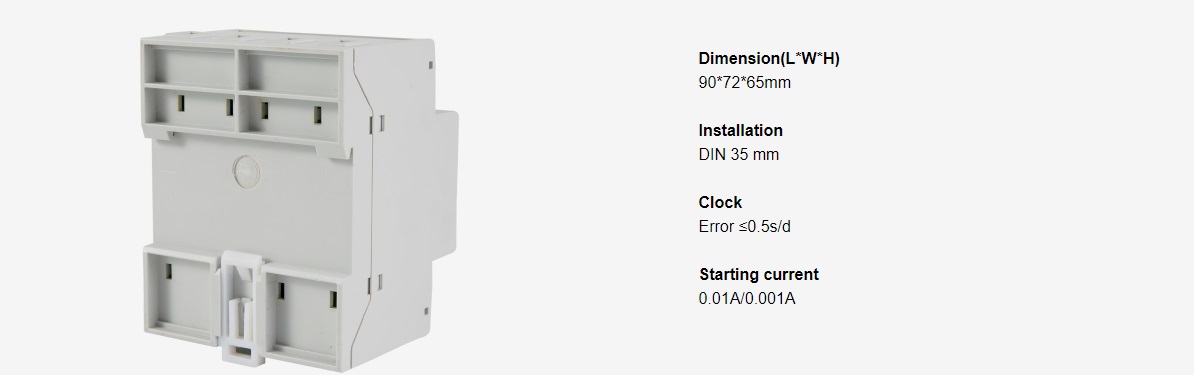

Installation

FAQ

Q：After the meter is powered on, the power or energy count is inaccurate.

A：Switch the meter display to the power (active power P, power factor λ) interface, and check whether the power display is negative or not. And whether the power factor is between 0.9-0.95, and then check whether the incoming and outgoing wires of the current signal wire are connected reversely (that is, the current The incoming wire must be the same as the incoming wire end of the instrument) and consistent with the wiring diagram on the instrument.

Q：The instrument cannot communicate with the host computer normally after power on.

A：1. The voltage value between the communication output A and B of the measuring instrument should be between +(4.4-4.5)V;

2. Check whether the communication wiring method is correctly wired in accordance with the wiring diagram requirements (that is, the communication terminal A/B of the corresponding to communication serial port A/B);

Package

MINIMUM PACKAGE
